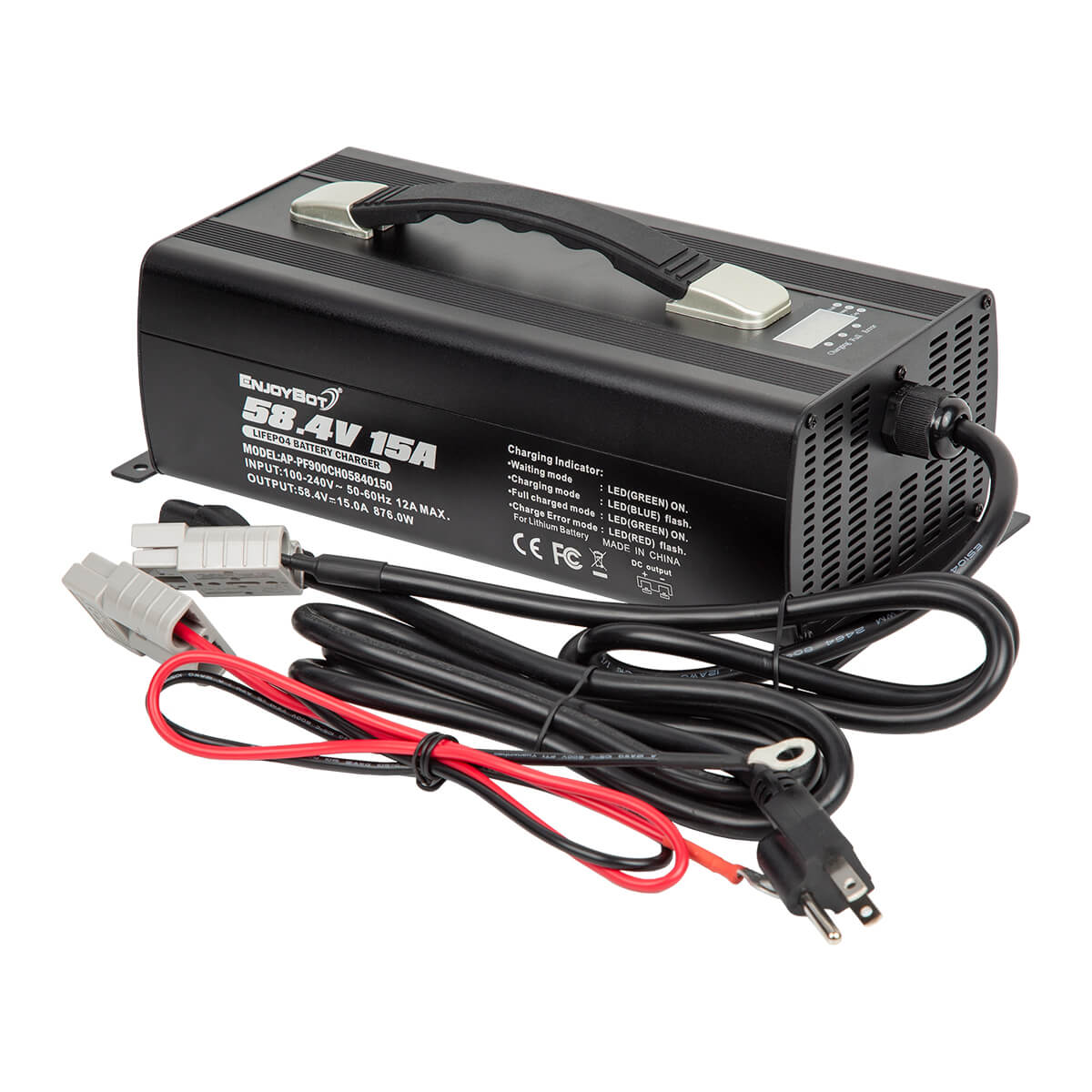

Now mountable and portable with a reliable Anderson Connector and upgraded from alligator clips to M8 Ring Terminals for a more secure connection.
Designed for 48V (51.2V) LiFePO4 batteries. Our charger supports 0V charging function to reactivate or repair batteries that have not been used for a long time. Advanced charging modes: Pre-charge(T1), Fast charge(T2), and Float charge(T3) for efficient charging.
Stable voltage accuracy at ±0.2V (approx.58.2V to 58.6V) . Constant current of 15A and a constant voltage around 58.4V, it enables 90% high charging efficiency.
Over temperature / output short-circuit / reverse polarity / output over-voltage protection, that prevent damage by faulty operations.
Only takes 7 hours to fully charge a 48V 100Ah LiFePO4 battery, ideal for 48V LiFePO4 batteries.
Use Method:
1) Close the power switch first.
2) Connect the batteries to the output socket with output wires-positive to positive, and negative to negative.
3) Plug the input wires correctly and connect them to the input power source then.
4) Open the power switch, LED flashes blue means the battery is being charged.
5) LED always green means the battery is fully charged, switch off the charger.
6) Disconnect the input cable.
7) Disconnect the output wires.
Specification:
| Output Voltage | DC 58.4 Volt |
| Output Current | 15 Amps |
| Outout Power | 876 watt |
| Condition | New |
| Input Voltage | AC 100V-240 V |
| Input Voltage Frequency | 50-60 Hz |
| Battery Type | Preset for LiFePO4 battery |
| Operating temperature | -10°C - 45°C |
| Storage temperature | -40°C - 75°C |
| Dimensions | L 11.22" x W 5.59" x H 3.54" (285*142*90mm) |
| Input line length | 4.9 ft |
| Output line length | 4.9 ft |
| Net weight | 2.4KG / 5.29lbs |
| Input plug | US standard |
| Output plug | Alligator Clips |
Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
