Do you sometimes struggle to accurately gauge your battery's remaining capacity? Enjoybot battery monitor offers a comprehensive solution to this common issue.
Suitable for 8-120V , 0-9999Ah battery packs. Automatically identify different batteries, such as Li-ion, LiFePO4, Gel, AGM, etc.

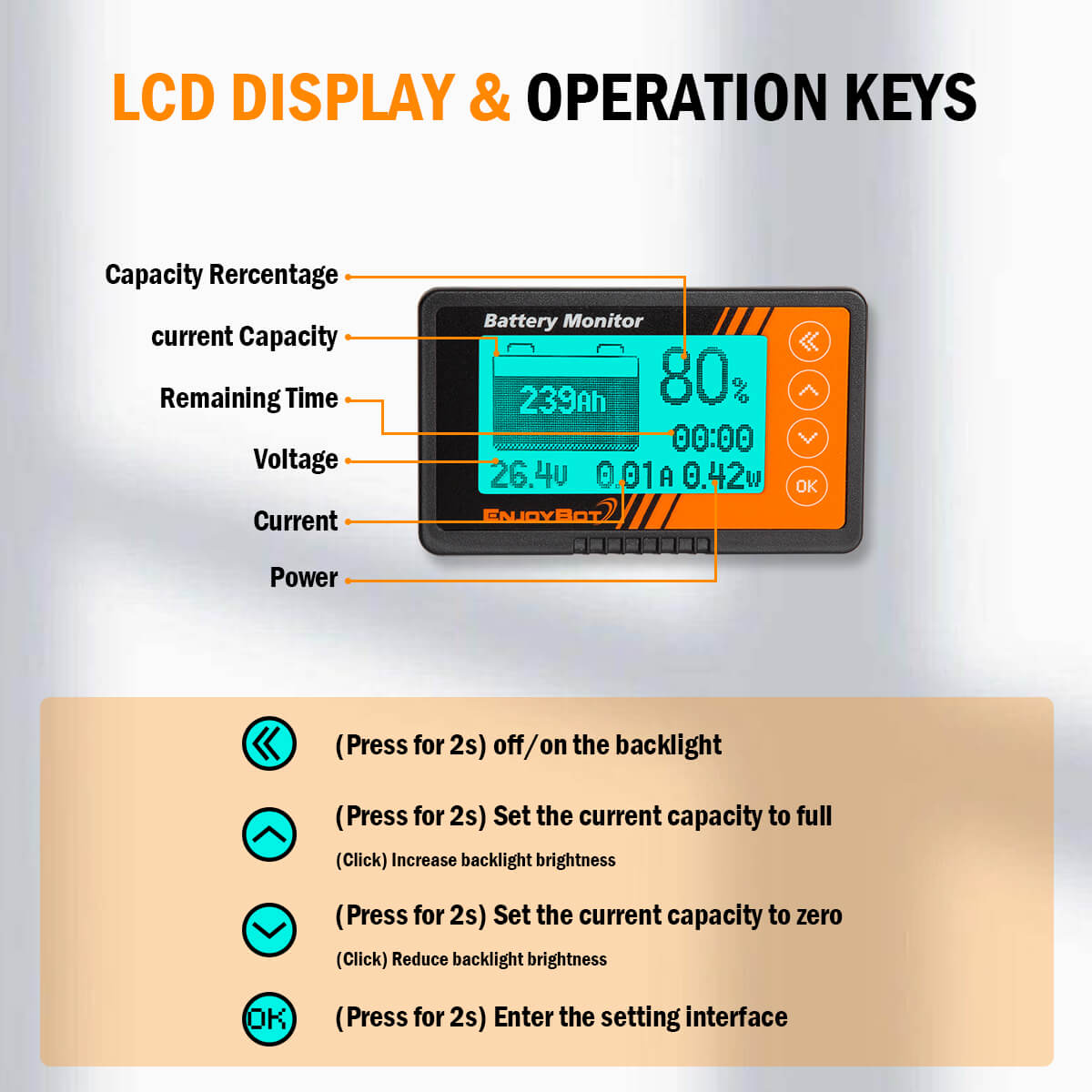

The screen can accurately display battery pack parameters like voltage, current, 0power consumption, capacity, and decay rate in real-time. This allows you to know the battery's working status at any time. Its backlight design also eases night use.
When voltage or capacity drops below the set value, the percentage and battery symbol on the LCD screen flash, and the buzzer alarms every 10 seconds to prevent battery over - discharge.

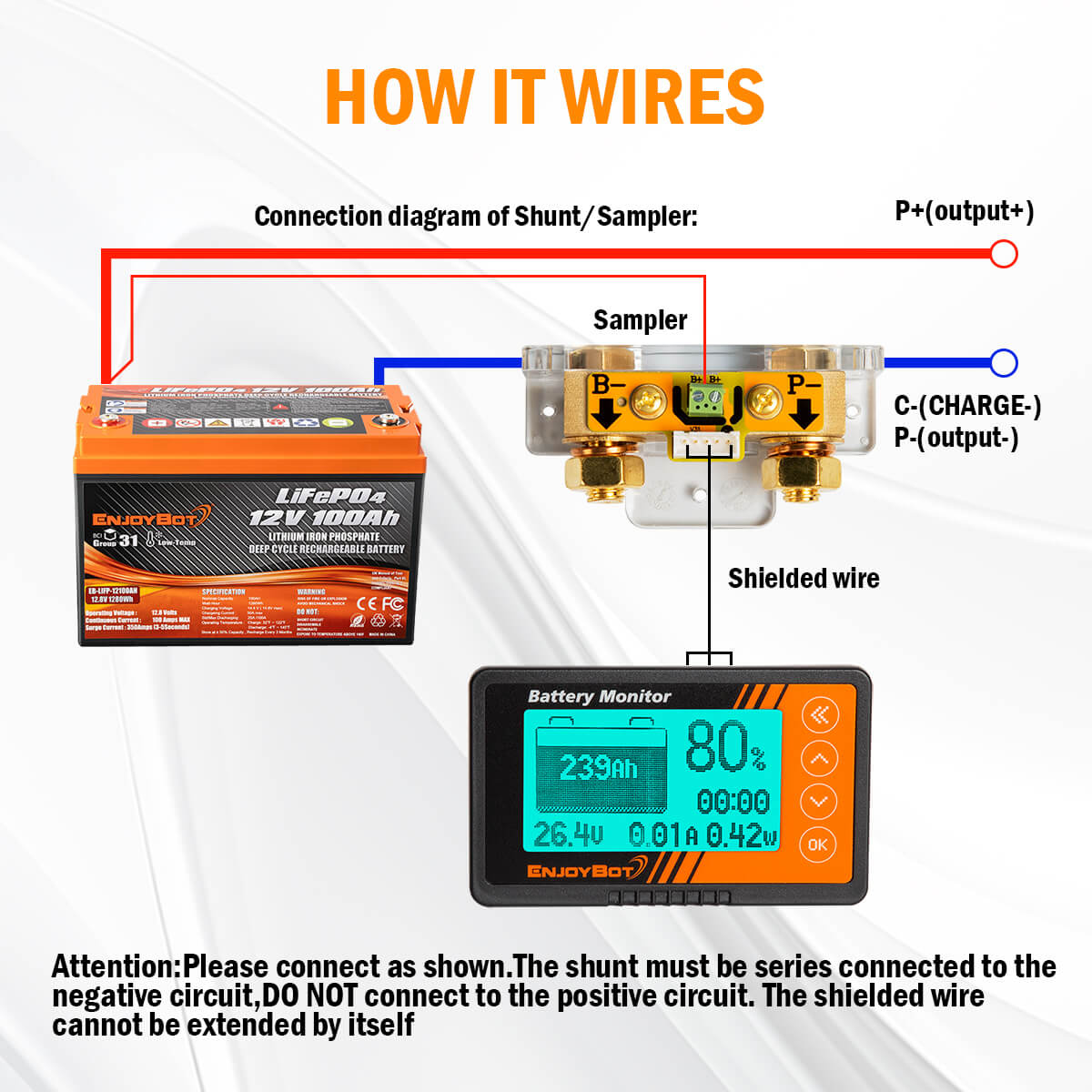

The transparent shunt bracket simplifies shunt installation for the battery tester. With a 20 - foot shielded cable, you can remotely monitor battery status.
It applies effectively to diverse products. These include RVs, flatbeds, electric vehicles, emergency & energy storage power supplies, measuring and medical equipment, and various battery - powered instruments.
Specification:
| Parameter | Min. | Regular | Max. |
| Working Voltage | 8V | 50V | 120V |
| Working Consumption | 8mA | 12mA | |
| Static Consumption | 1mA | 2mA | |
| Power off Consumption | 50 | μA | |
| Accuracy of Voltage Collecting | ±1% | ||
| Accuracy of Current Collecting | ±1% | ||
| Accuracy of Capacity Collecting | ±1% | ||
| Backlight on Current | 100mA | ||
| Capacity Detection Range | 0.1Ah | 100Ah | 9999Ah |
| Sampler Current | 0 | 350A | 500A |
| Temperature Range | -10°C | 20°C | 60°C |
| Weight | 420g | ||

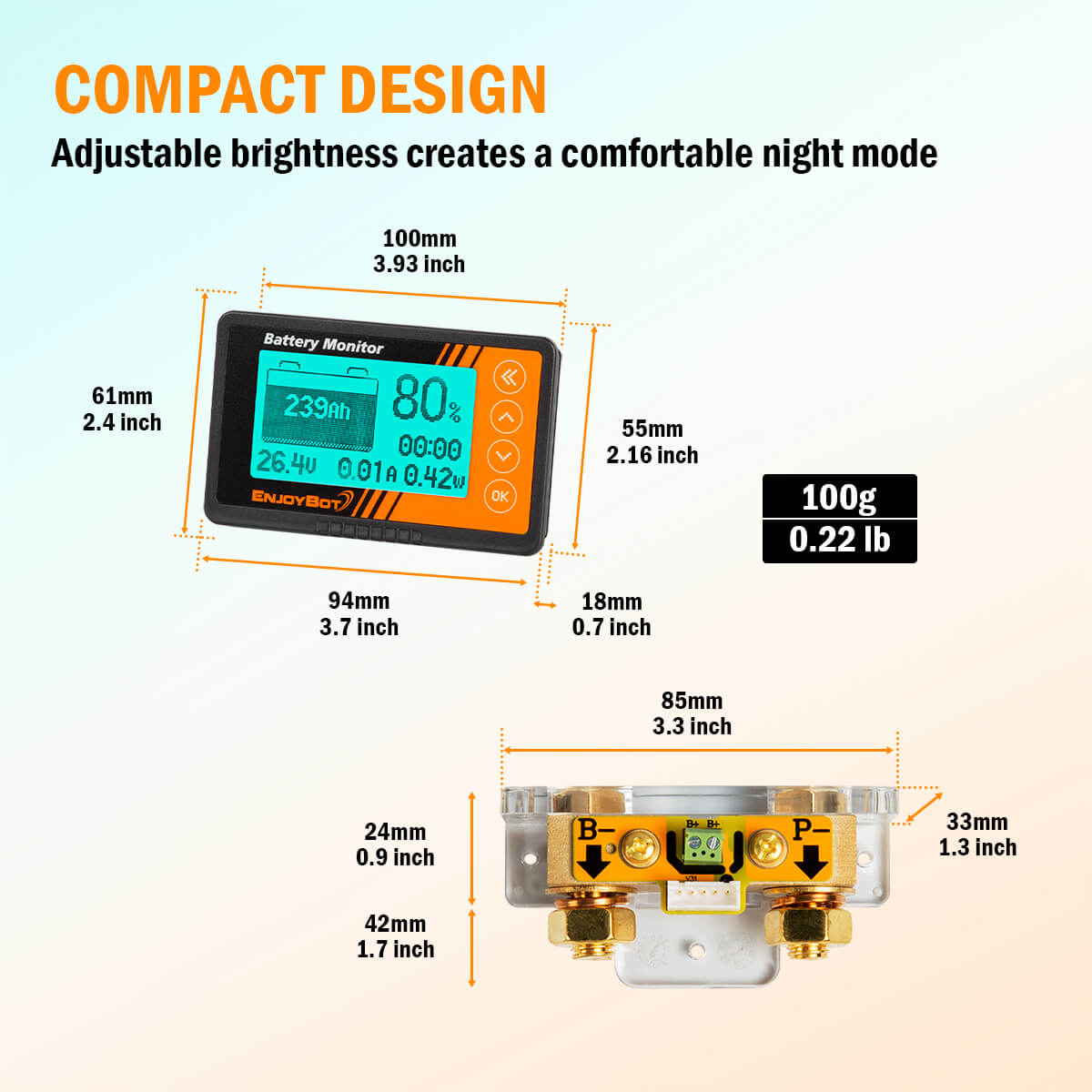

| Size | 100*61*17mm |

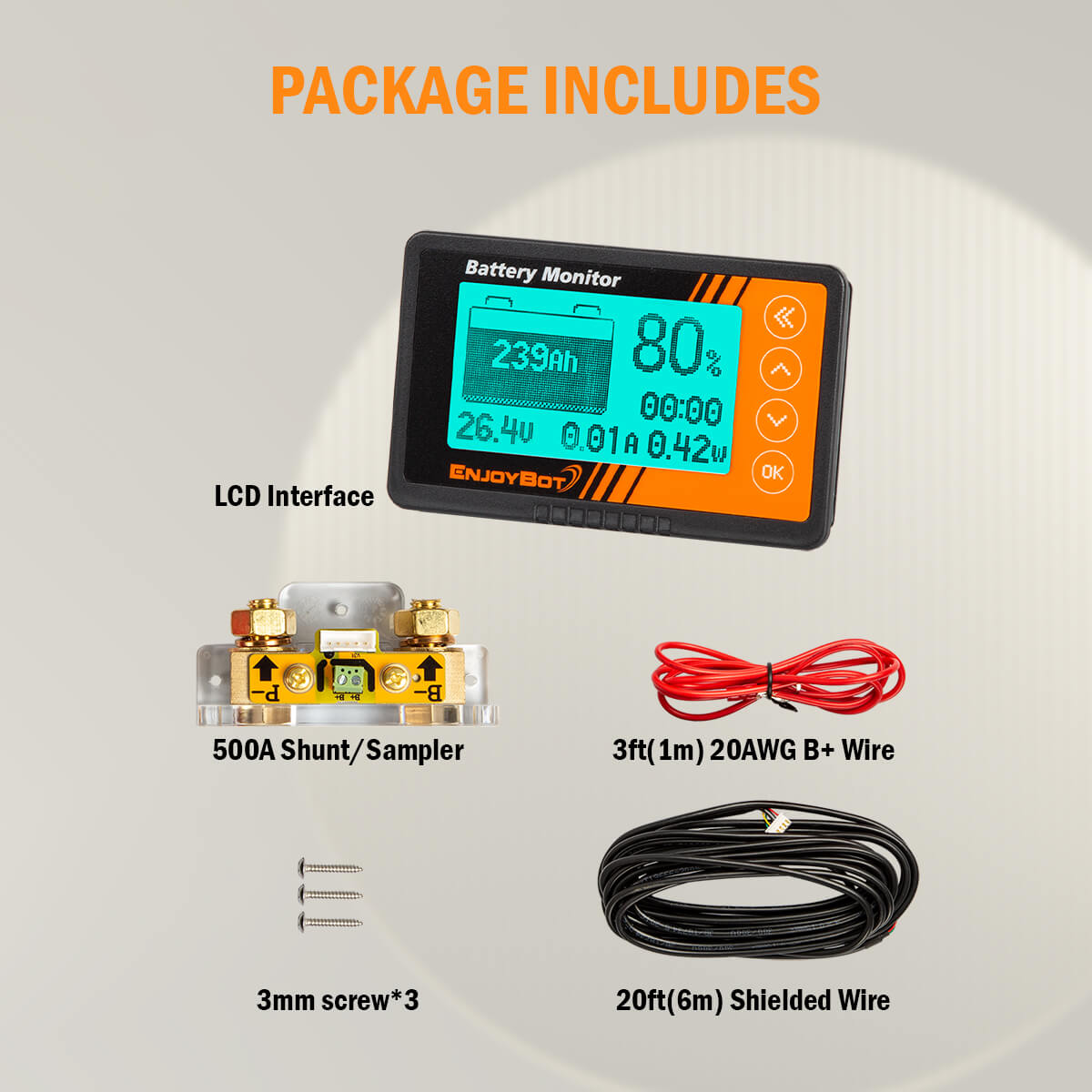

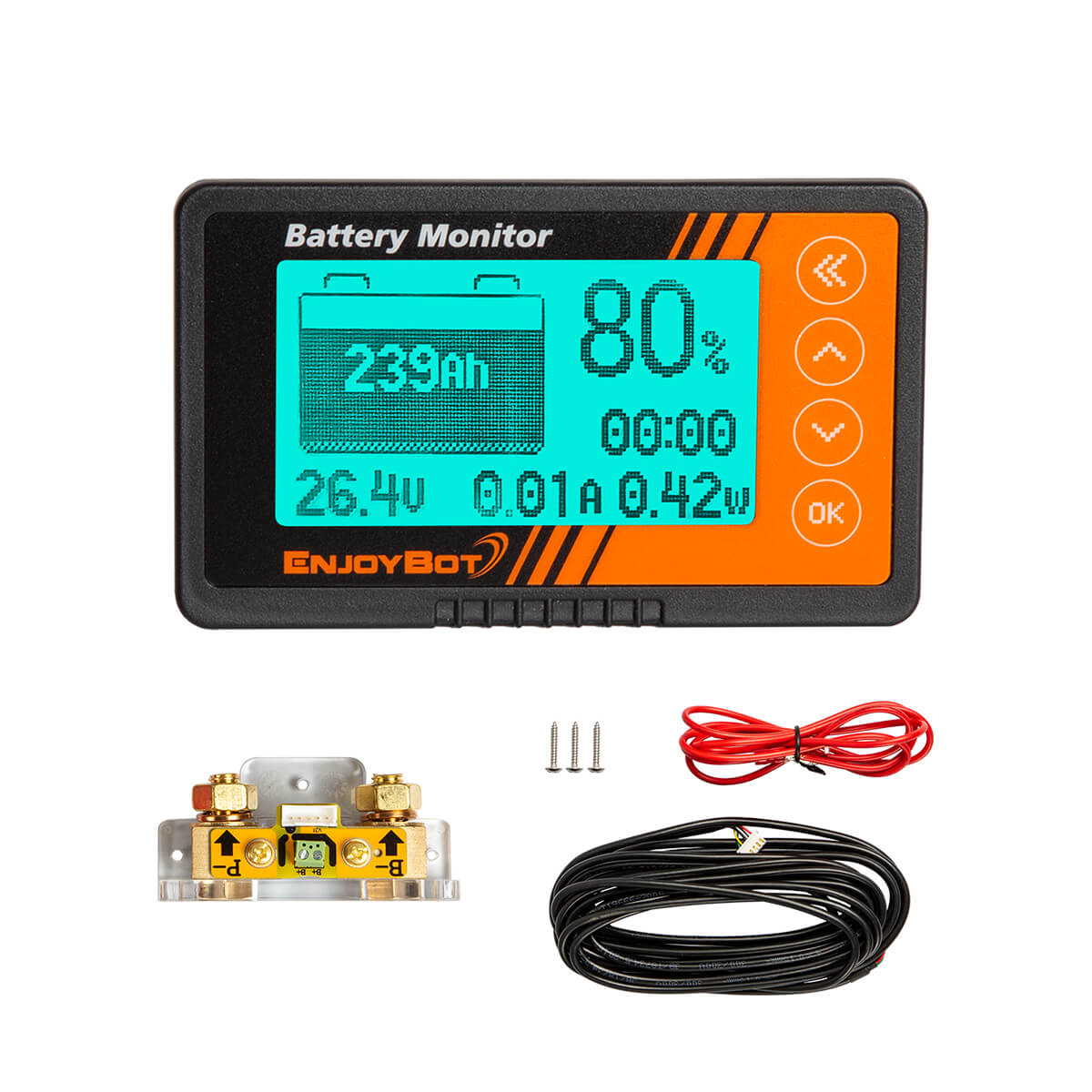

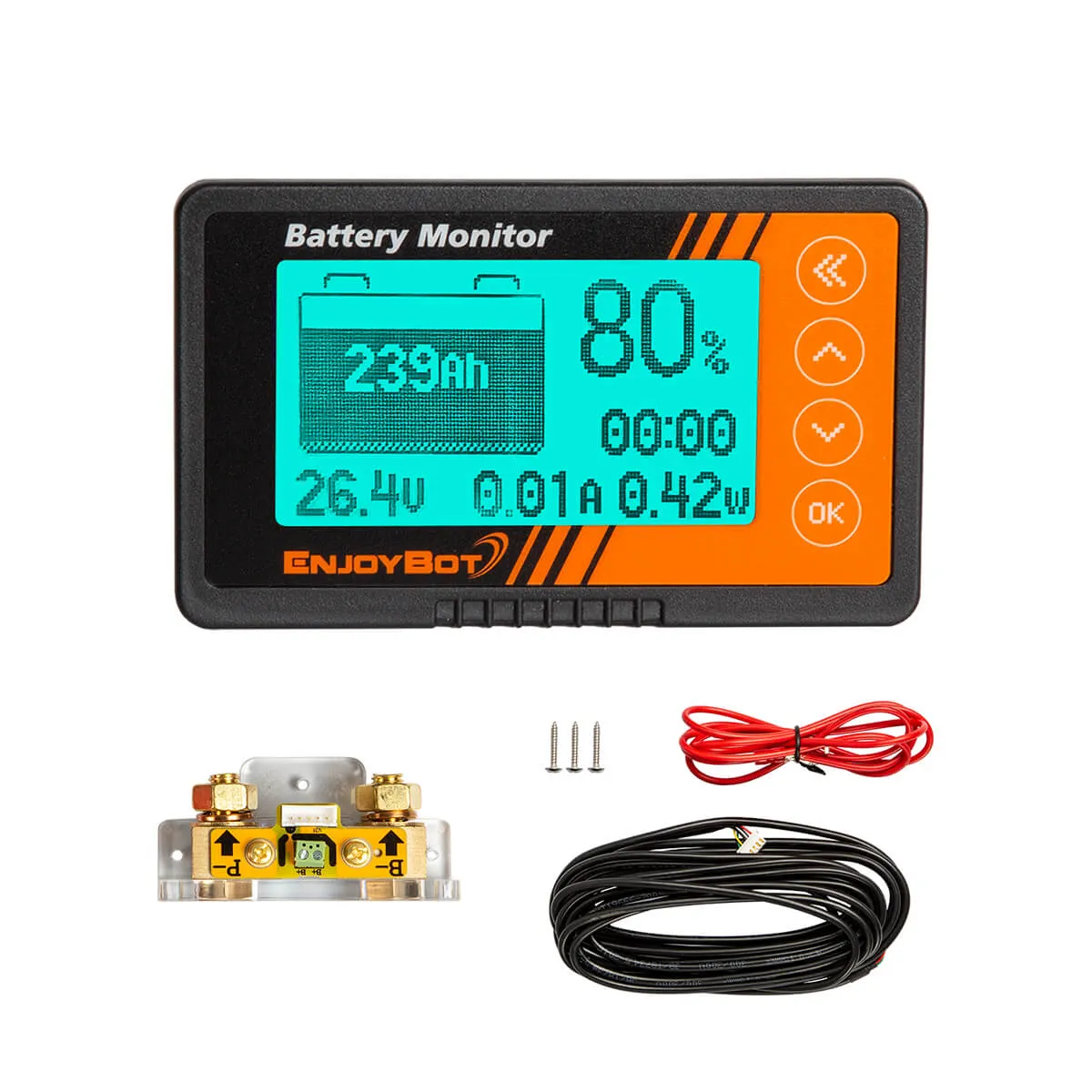

Packing List:
- LCD display*1
- 500A shunt (with transparent bracket)*1
- 20ft shielded wire*1
- 20AWG 3ft (1M) power cord*1
- Mounting screws*3
- Manual*1 (before use Must see)
