The ultimate performance upgrade for your 36V golf cart. This kit strikes the perfect balance between power, efficiency, and simplicity, making it a powerful upgrade for any golf cart.
One and done. Everything included in your package!
Wide Compatibility
Compatible with leading brands like EZGO, Club Car, Yamaha, Star EV, and Polaris . Ideal for golf cart with motor under 5kw and controller under 400A .
Powerful than Before
Advanced 100A BMS delivers 100A continuous current and 350A peak (3-5s) for enhanced power on any terrain.
Reliable Ride
With Bluetooth connectivity and low-temperature protection, it ensures a smooth, reliable ride no matter the conditions. Extra battery monitor included.
Fast Charging
Fully charges in just 5 hours with 43.8V 20A fast charger, DC-DC buck converter ensures smooth operation of all 12V electrical devices on your golf cart.

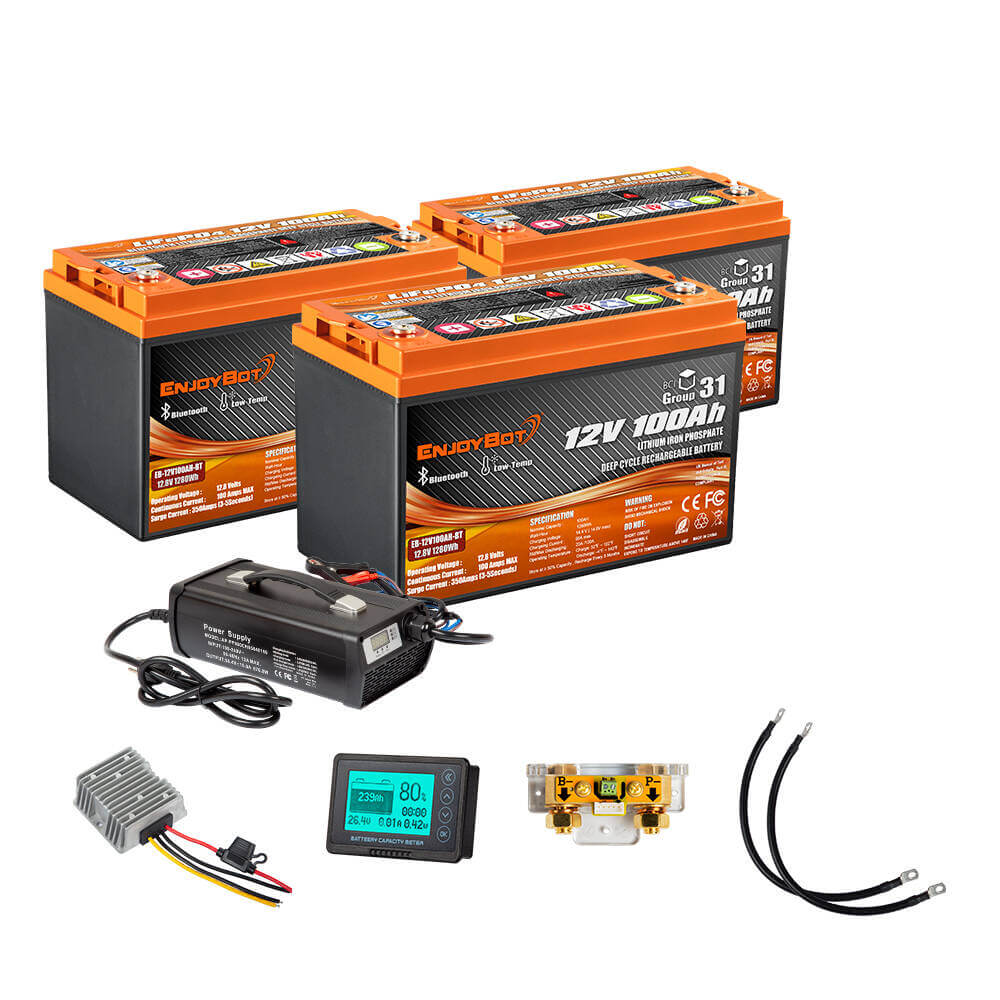

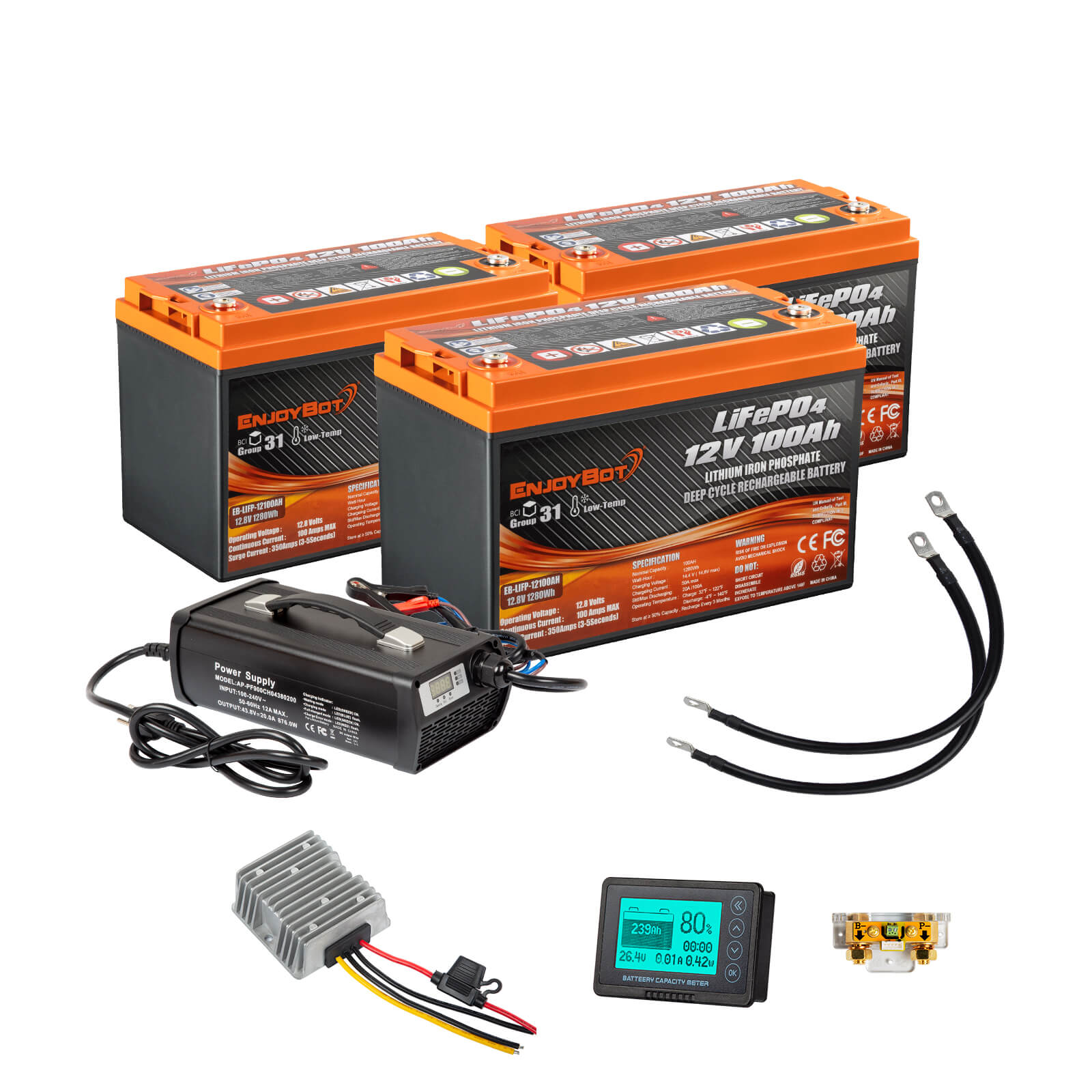

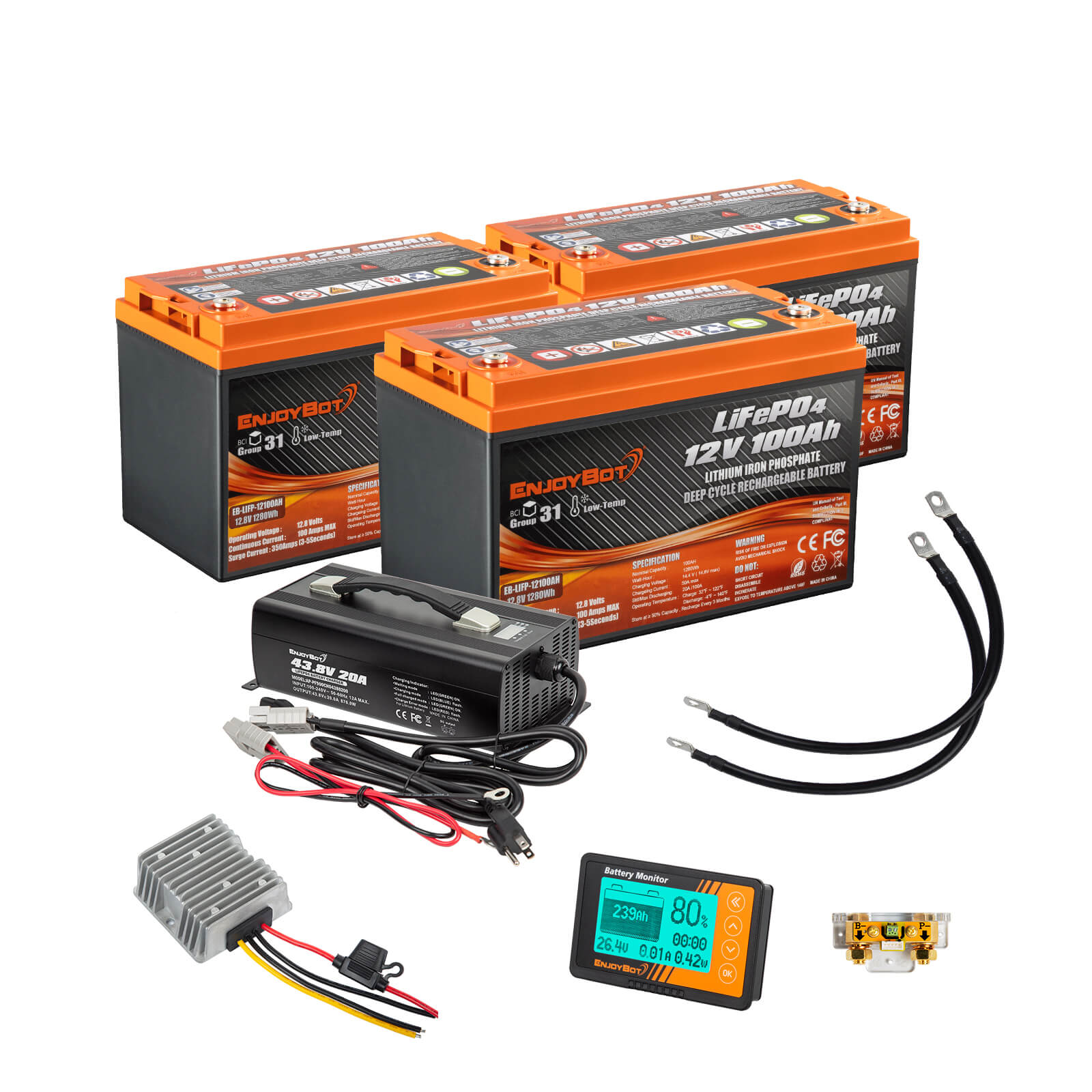

Packing List:
3* 12V 100Ah Enjoybot LiFePO4 Lithium Battery

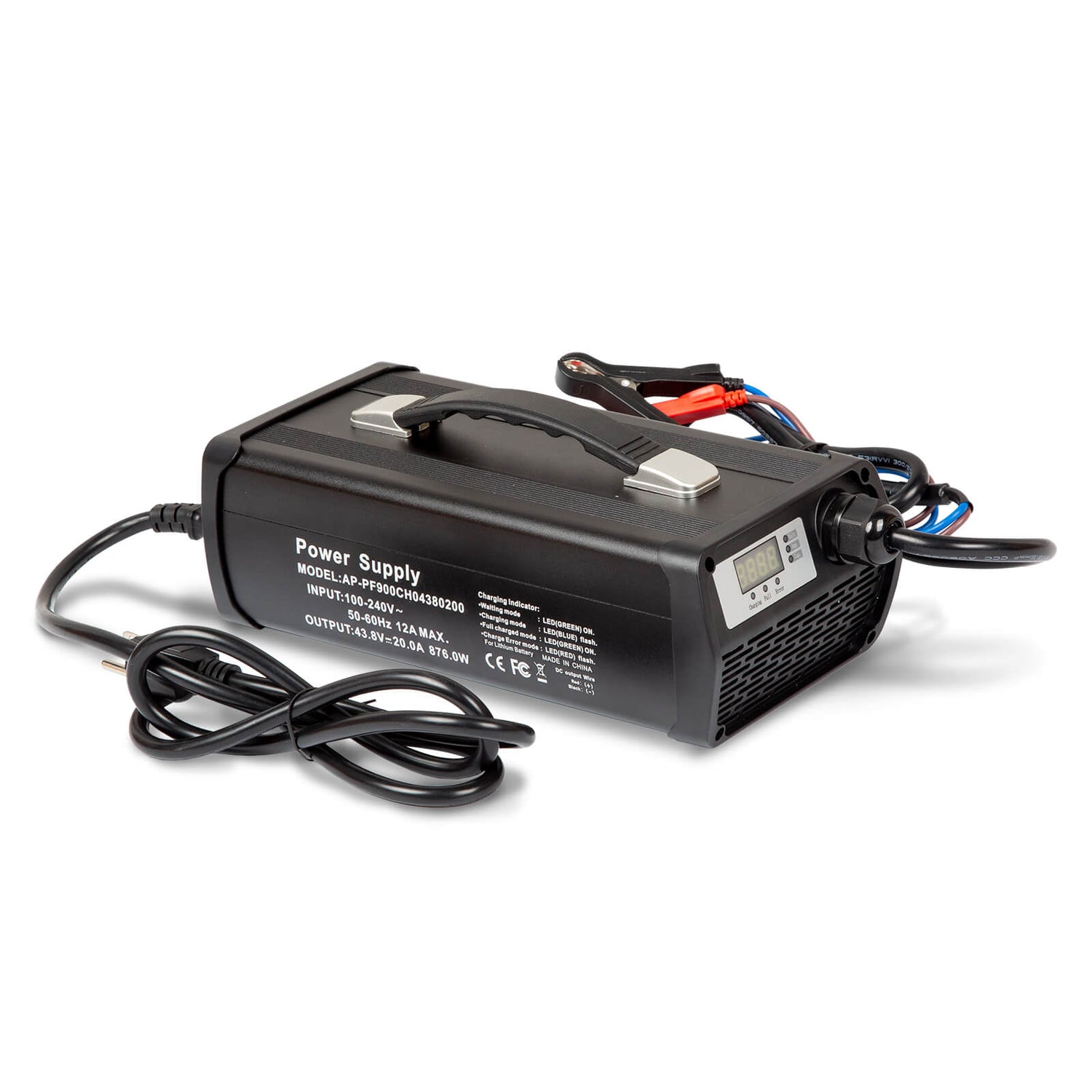

1* 43.8V 20A Enjoybot LiFePO4 Lithium Charger

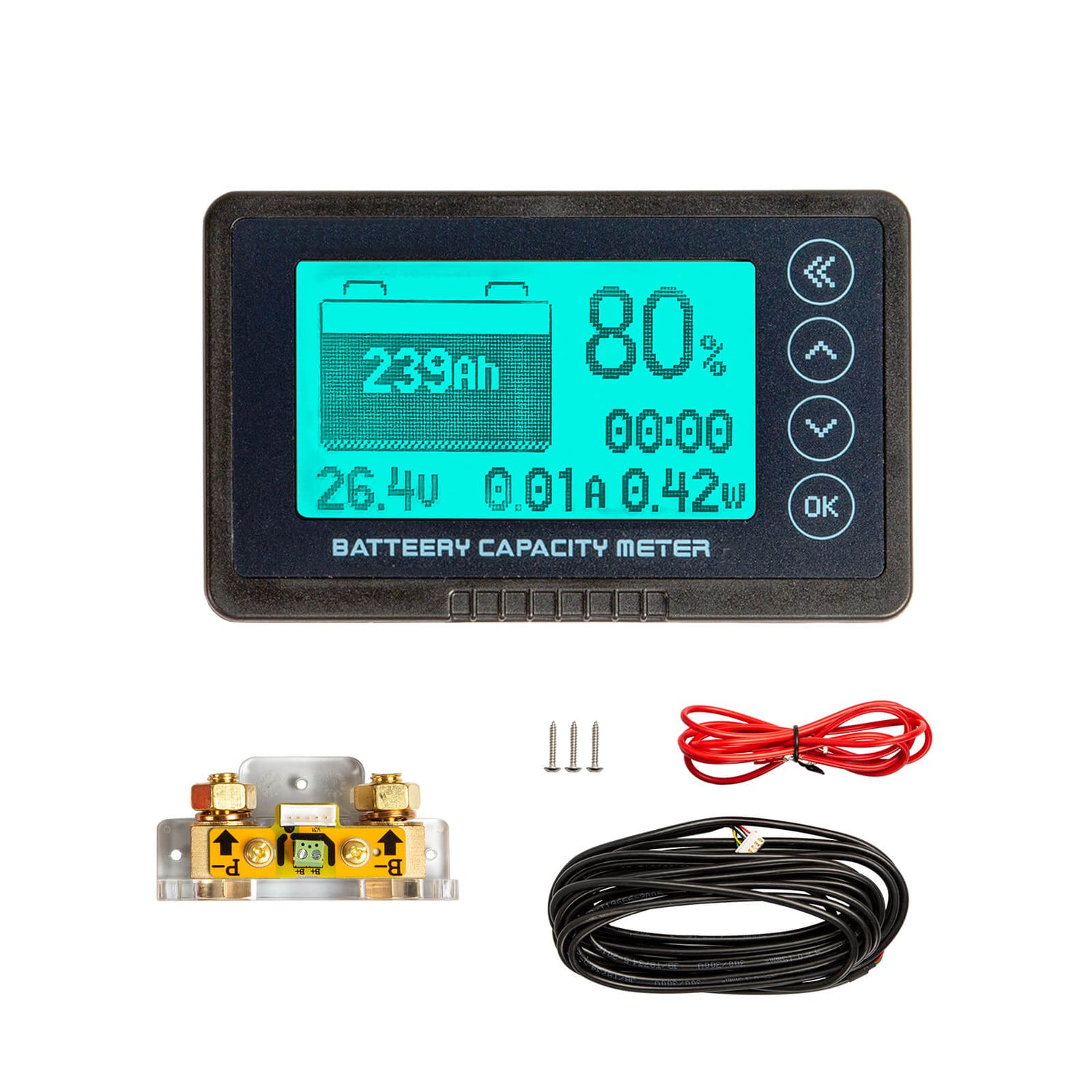

1* 500A Battery Monitor with Shunt
1* DC-DC Converter

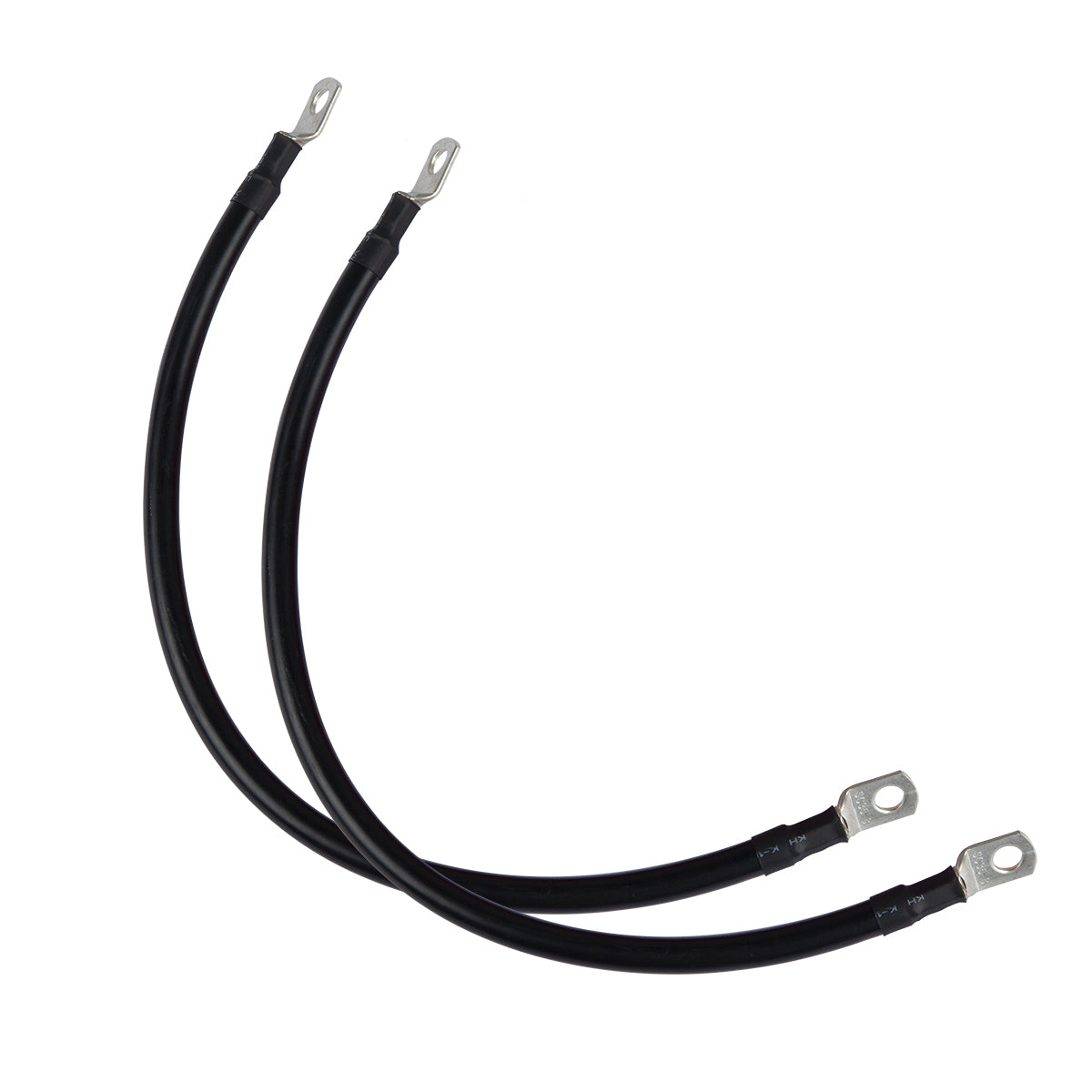

2* Terminals & Caps Per Battery
1* User Manual
Specifications
SKU
EB-12100MINI-SHBT
EB-12100-6S
BCI Group
Group 24
Group 31

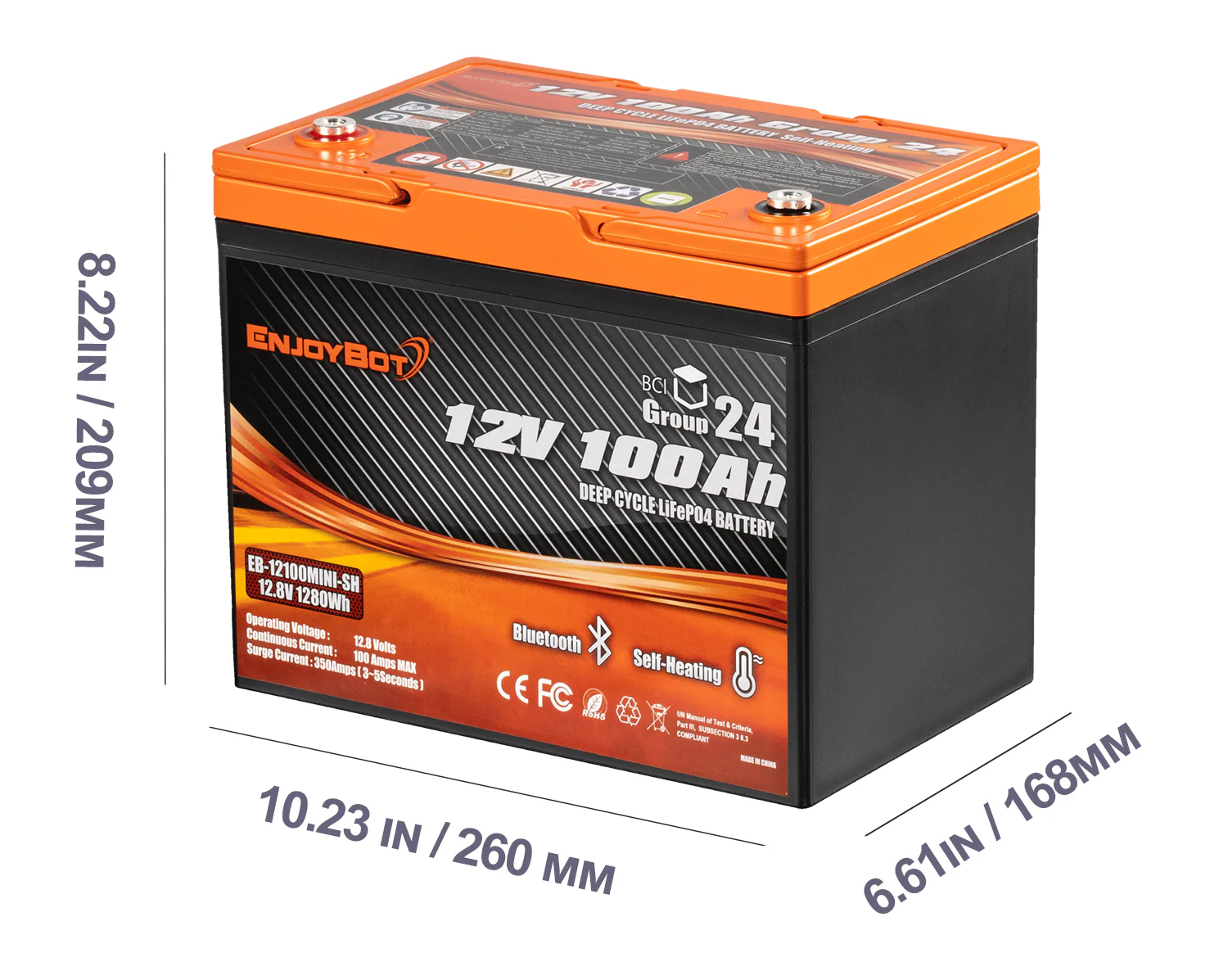

Dimension
10.23 x 6.61 x 8.22 in
10.23 x 6.61 x 8.22 in
Weight
22 lbs
23 lbs
Feature
Bluetooth / Self-Heating / Low Temp Cutoff
Low Temp Cutoff
Cell
Grade A LiFePO4 Prismatic Cells
Grade A LiFePO4 Prismatic Cells
Terminal
M8*16mm (L)
M8*16mm (L)
Battery Pack Case
ABS Plastic
ABS Plastic
Energy
1280Wh
1280Wh
Cycle Life
4,000 times @ 100% DOD
4,000 times @ 100% DOD
4,000 times @ 100% DOD
100%
100%
Nominal Voltage
12.8V
12.8V
Nominal/Usable Capability
100Ah
100Ah
BMS
100A
100A
Max. Continuous Charging Current
50A
50A
Max. Continuous Discharging Current
100A
100A
Peak Discharge Current
350A (3-5 Seconds)
350A (3-5 Seconds)
Max. Load/Inverter Power
1280W
1280W
Charge Voltage
14.2V-14.6V
14.2V-14.6V
Recommend Charge Current
20A
20A
Recommend Charge Current
4 Packs
6 Packs
Ideal Max. Batteries in Parallel
1-4 Packs
1-4 Packs
Max. Batteries in Parallel
10 Packs
10 Packs
Max. Configuration
4S4P (build 48V 400Ah battery system)
6S4P (build 72V 400Ah battery system)
Charge Temperature
-4°F ~ 131°F (-20°C ~ 55°C)
32℉ ~ 122℉ (0℃ ~ 50℃)
Discharge Temperature
-4℉ ~ 140℉ (-20℃ ~ 60℃)
-4℉ ~ 140℉ (-20℃ ~ 60℃)
Storage Temperature
14℉ ~ 122℉ (-10℃ ~ 50℃)
14℉ ~ 122℉ (-10℃ ~ 50℃)
Overview
4000 Cycles
Advanced 100A BMS
Bluetooth
Internal Heating
IP67 Waterproof
10 Years Warranty
Bluetooth feature only available in Group 24 version
