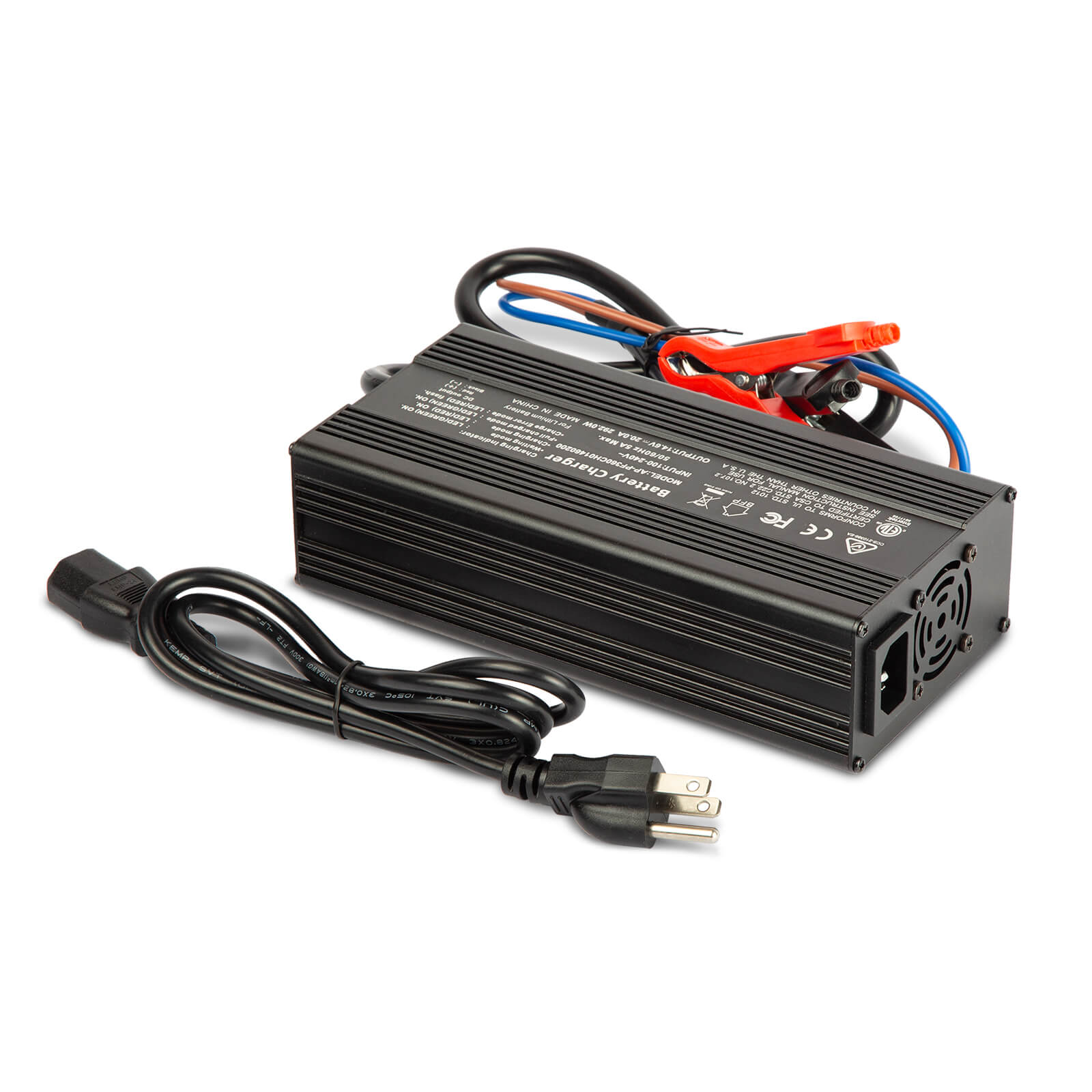

It is a light weight, high frequency type charger for charging 12V batteries made with Lithium Iron Phosphate cells.
The 20A of output typically recharges 12V Lithium Ion batteries with ease(Actual recharge time varies by specific application and energy consumed).
Designed for 12V (12.8V) LiFePO4 batteries. Our charger supports 0V charging function to reactivate or repair batteries that have not been used for a long time. Advanced charging modes: Pre-charge(T1), Fast charge(T2), and Float charge(T3) for efficient charging.
Proper structure as well as nice thermal design make the charger small, light and portable . (Advanced LLC half - bridge resonant soft - switching power supply control)
Goodheat dissipation, high hardness / antioxidant - made of high quality military and industrial levels components, advanced circuit design.
Over temperature / output short-circuit / reverse polarity / output over-voltage protection, that prevent damage by faulty operations.
Only takes 5 hours to fully charge a 12V 100Ah LiFePO4 battery, ideal for 20Ah and above LiFePO4 batteries.
Use Method:
1) Close the power switch firstly.
2) Connect the batteries to the output socket with output wires-positive to positive,negative to negative.
3) Plug the input wires correctly and connect to the input power source then.
4) Open the power switch, LED always red means battery is being charged.
5) LED always green means battery is fully charged, switch off the charger.
6) Disconnect he input cable.
7) Disconnect the output wires.
Specification:
| Output Voltage | DC 14.6 Volt |
| Output Current | 20 Amps |
| Output Power | 292 watt |
| Condition: | New |
| Input Voltage | AC100-240 V |
| Input Voltage Frequency | 50-60 Hz |
| Battery Type | Preset for LiFePO4 battery |
| Operating temperature | -10°C - 45°C |
| Storage temperature | -40°C - 75°C |
| Dimensions | L 8" x W 3.93" x H 2.12" (203*100*54mm) |
| Input line length | 4 ft |
| Output line length | 4 ft |
| Net weight | 1.3 KG / 2.86 lbs |
| Input plug | US standard |
| Output plug | Alligator Clips |
