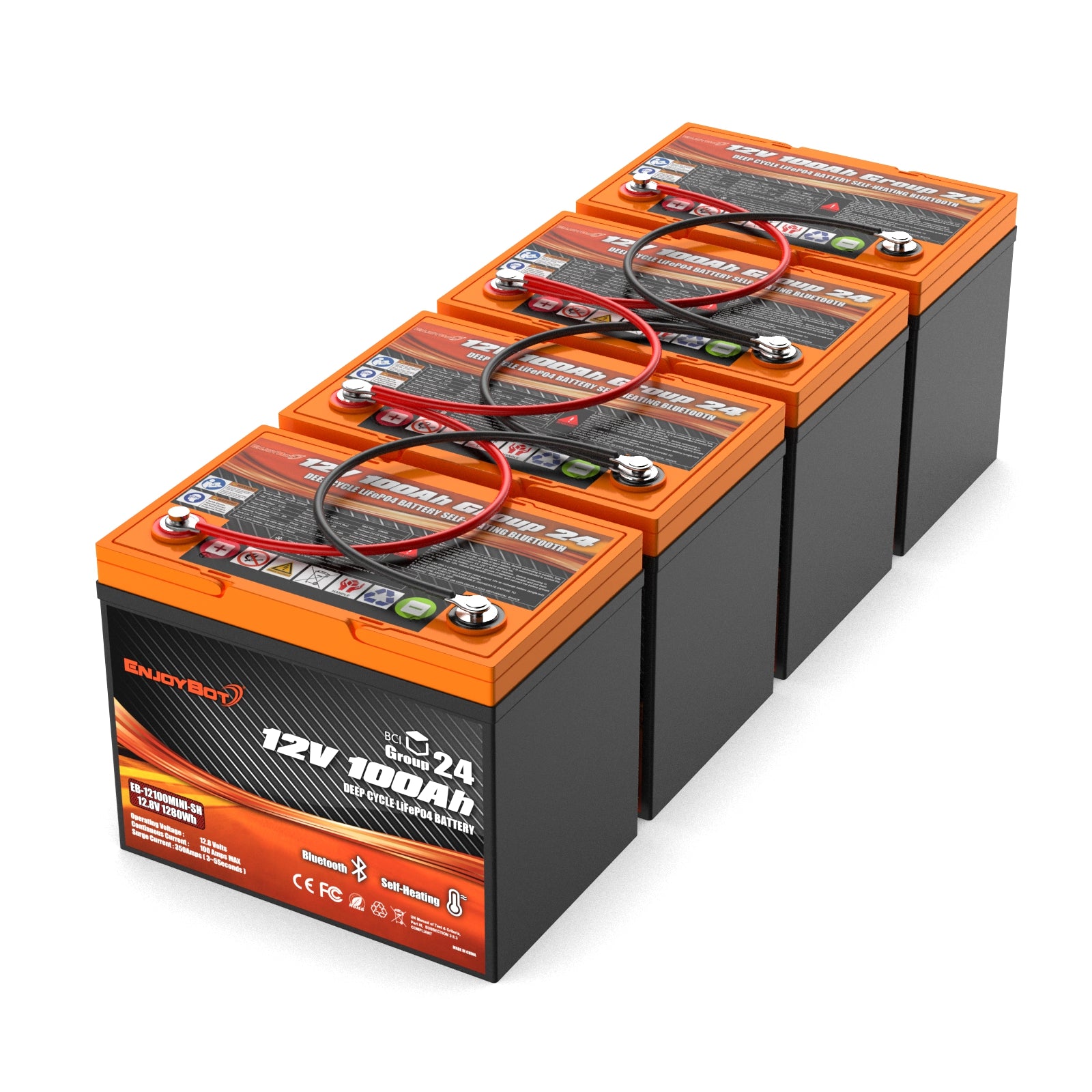

4x Capacity Scaling: By connecting four 12V 100Ah batteries in parallel, the total capacity reaches 400Ah at 12V, offering significantly longer runtime for high-energy applications like off-grid solar systems or RVs.
Start with 1–2 batteries and scale up as needed, reducing initial costs while maintaining compatibility with existing 12V infrastructure (e.g., inverters or solar controllers)
With four batteries in parallel, the system retains 75% capacity even if one unit fails, ensuring continuous power for critical devices.
Automatic Self-Heating
Intelligent automatic self-heating function activates at 32°F charging cutoff and charging resumes at 41°F, preventing cold-weather damage.
Bluetooth 5.0
This innovative feature enables real-time tracking of voltage, capacity, and charging status, making it easier than ever to keep your battery in optimal condition.
Battery Management System
Advanced 100A BMS with six-layer protection, supporting 100A continuous / 350A peak current output.
Scalable Architecture
6S4P configuration achieves 72V 400Ah capacity, enabling flexible expansion for high-demand applications. (max. 4S4P for group 24)
Packing List:
4* 12V 100Ah Enjoybot LiFePO4 Lithium Battery
2* Terminals & Caps
6* 3 AWG Cable
1* User Manual
Specifications
SKU
EB-12100MINI-SHBT
EB-12100-6S
BCI Group
Group 24
Group 31
Dimension
10.23 x 6.61 x 8.22 in
10.23 x 6.61 x 8.22 in
Weight
22 lbs
23 lbs
Feature
Bluetooth / Self-Heating / Low Temp Cutoff
Low Temp Cutoff
Cell
Grade A LiFePO4 Prismatic Cells
Grade A LiFePO4 Prismatic Cells
Terminal
M8*16mm (L)
M8*16mm (L)
Battery Pack Case
ABS Plastic
ABS Plastic
Energy
1280Wh
1280Wh
Cycle Life
4,000 times @ 100% DOD
4,000 times @ 100% DOD
4,000 times @ 100% DOD
100%
100%
Nominal Voltage
12.8V
12.8V
Nominal/Usable Capability
100Ah
100Ah
BMS
100A
100A
Max. Continuous Charging Current
50A
50A
Max. Continuous Discharging Current
100A
100A
Peak Discharge Current
350A (3-5 Seconds)
350A (3-5 Seconds)
Max. Load/Inverter Power
1280W
1280W
Charge Voltage
14.2V-14.6V
14.2V-14.6V
Recommend Charge Current
20A
20A
Recommend Charge Current
4 Packs
6 Packs
Ideal Max. Batteries in Parallel
1-4 Packs
1-4 Packs
Max. Batteries in Parallel
10 Packs
10 Packs
Max. Configuration
4S4P (build 48V 400Ah battery system)
6S4P (build 72V 400Ah battery system)
Charge Temperature
-4°F ~ 131°F (-20°C ~ 55°C)
32℉ ~ 122℉ (0℃ ~ 50℃)
Discharge Temperature
-4℉ ~ 140℉ (-20℃ ~ 60℃)
-4℉ ~ 140℉ (-20℃ ~ 60℃)
Storage Temperature
14℉ ~ 122℉ (-10℃ ~ 50℃)
14℉ ~ 122℉ (-10℃ ~ 50℃)
Overview
4000 Cycles
Advanced 100A BMS
Bluetooth
Internal Heating
IP67 Waterproof
10 Years Warranty
Bluetooth feature only available in Group 24 version
