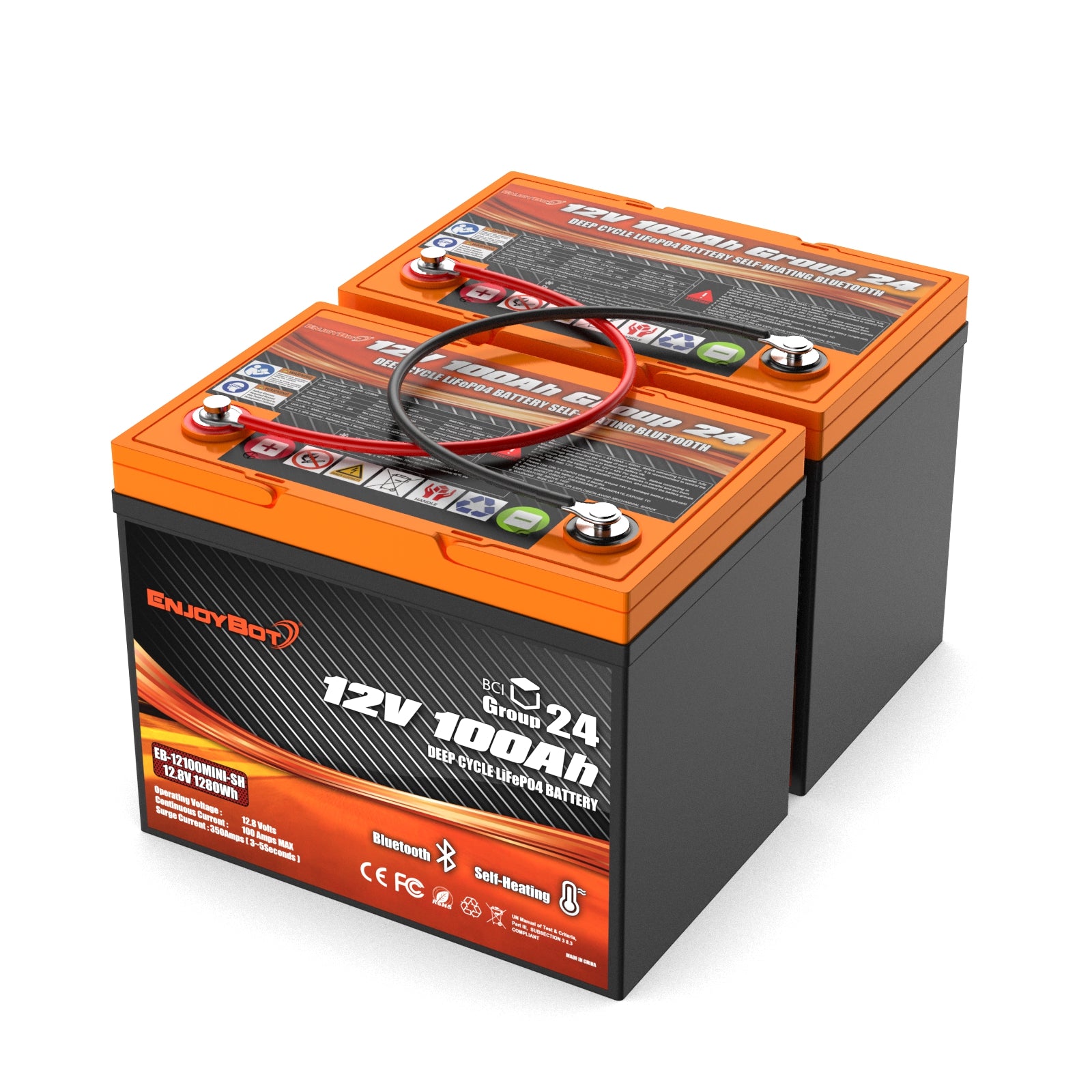

Connecting two 12V 100Ah batteries in parallel increases total capacity to 200Ah while maintaining a 12V output, significantly extending runtime for applications like solar energy storage or off-grid systems.
Doubled capacity supports higher energy demands for solar-powered devices like servers or household appliances.
Automatic Self-Heating
Intelligent automatic self-heating function activates at 32°F charging cutoff and charging resumes at 41°F, preventing cold-weather damage.
Bluetooth 5.0
This innovative feature enables real-time tracking of voltage, capacity, and charging status, making it easier than ever to keep your battery in optimal condition.
Battery Management System
Advanced 100A BMS with six-layer protection, supporting 100A continuous / 350A peak current output.
Scalable Architecture
6S4P configuration achieves 72V 400Ah capacity, enabling flexible expansion for high-demand applications. (max. 4S4P for group 24)
Packing List:
2* 12V 100Ah Enjoybot LiFePO4 Lithium Battery
2* Terminals & Caps
2* 3 AWG Cable
1* User Manual
Specifications
SKU
EB-12100MINI-SHBT
EB-12100-6S
BCI Group
Group 24
Group 31
Dimension
10.23 x 6.61 x 8.22 in
10.23 x 6.61 x 8.22 in
Weight
22 lbs
23 lbs
Feature
Bluetooth / Self-Heating / Low Temp Cutoff
Low Temp Cutoff
Cell
Grade A LiFePO4 Prismatic Cells
Grade A LiFePO4 Prismatic Cells
Terminal
M8*16mm (L)
M8*16mm (L)
Battery Pack Case
ABS Plastic
ABS Plastic
Energy
1280Wh
1280Wh
Cycle Life
4,000 times @ 100% DOD
4,000 times @ 100% DOD
4,000 times @ 100% DOD
100%
100%
Nominal Voltage
12.8V
12.8V
Nominal/Usable Capability
100Ah
100Ah
BMS
100A
100A
Max. Continuous Charging Current
50A
50A
Max. Continuous Discharging Current
100A
100A
Peak Discharge Current
350A (3-5 Seconds)
350A (3-5 Seconds)
Max. Load/Inverter Power
1280W
1280W
Charge Voltage
14.2V-14.6V
14.2V-14.6V
Recommend Charge Current
20A
20A
Recommend Charge Current
4 Packs
6 Packs
Ideal Max. Batteries in Parallel
1-4 Packs
1-4 Packs
Max. Batteries in Parallel
10 Packs
10 Packs
Max. Configuration
4S4P (build 48V 400Ah battery system)
6S4P (build 72V 400Ah battery system)
Charge Temperature
-4°F ~ 131°F (-20°C ~ 55°C)
32℉ ~ 122℉ (0℃ ~ 50℃)
Discharge Temperature
-4℉ ~ 140℉ (-20℃ ~ 60℃)
-4℉ ~ 140℉ (-20℃ ~ 60℃)
Storage Temperature
14℉ ~ 122℉ (-10℃ ~ 50℃)
14℉ ~ 122℉ (-10℃ ~ 50℃)
Overview
4000 Cycles
Advanced 100A BMS
Bluetooth
Internal Heating
IP67 Waterproof
10 Years Warranty
Bluetooth feature only available in Group 24 version
