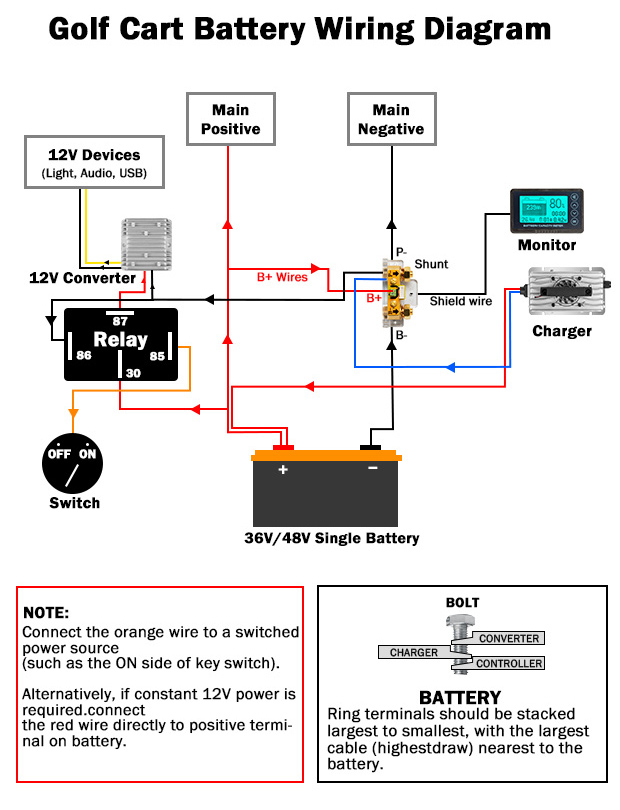

Connection in Series & Parallel:
"Ensure all batteries used in series/parallel are identical:
- Same brand and model
- Purchased within the last 3 months
(to guarantee matching specifications and state of health) - Voltage balancing required for series connection
- Golf Cart
- Solar Panel & RVs
💡Buyer Tips:
*Ideal for 36V & 48V golf carts ( other volts )
*For motor under 6kW & controller under 600A
*Top speed: 25-30mph / Range: 30-40 miles
💡Compatible With These Popular Golf Cart Brands
*Ideal for 36V & 48V golf carts ( other volts )
*For motor under 6kW & controller under 600A
*Top speed: 25-30mph / Range: 30-40 miles
💡Compatible With These Popular Golf Cart Brands
💡Buyer Tips:
*Runs twice as long, lasts 4X longer, half the weight
*5X faster charging speed
*Reliable energy storage solutions to recreational vehicles and home backup

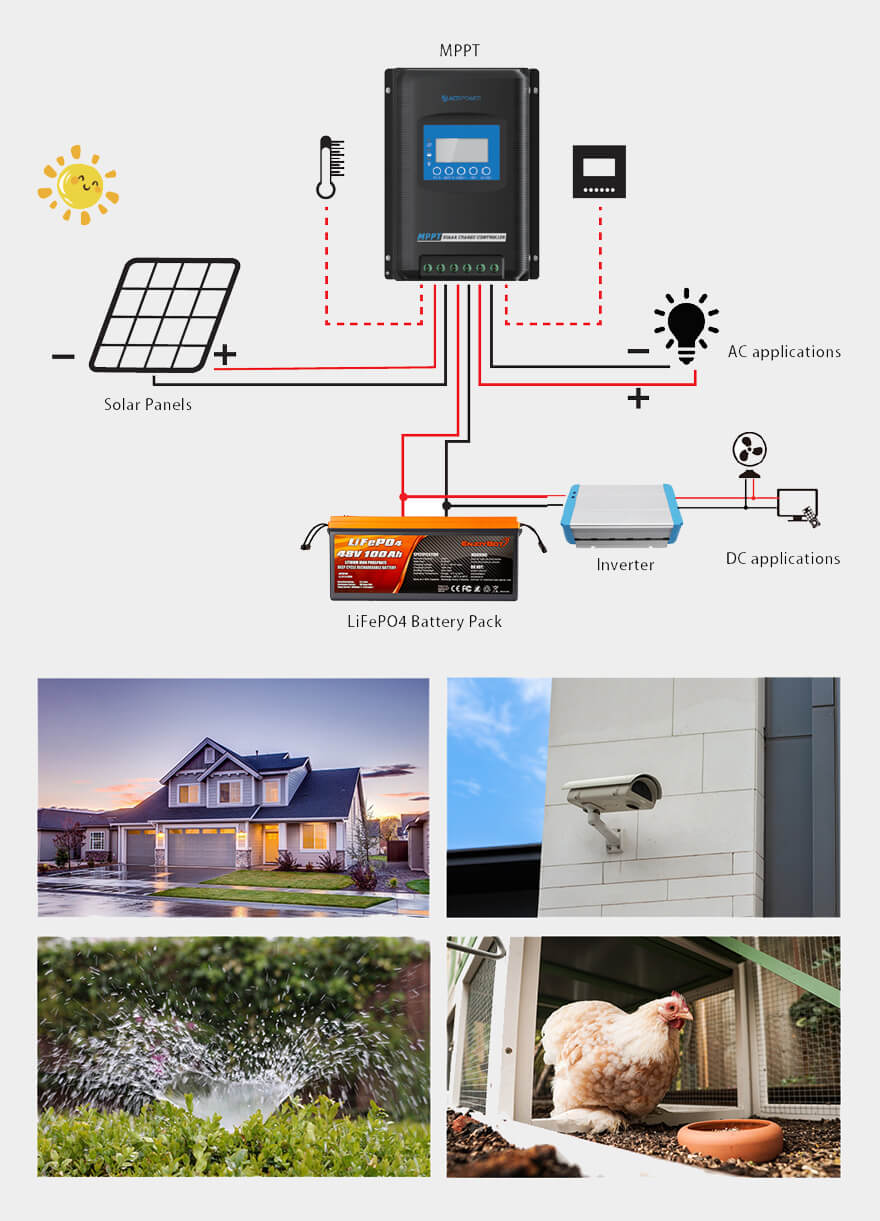

💡How It Works?
These batteries, when connected to a solar controller (MPPT), efficiently collect energy from solar panels. They can be used for both AC and DC applications, making them versatile and cost-effective. LiFePO4 batteries are suitable for various applications, including home backup power, home security systems, pond pumps, sprinklers, small-scale poultry farming, and so on.
*Runs twice as long, lasts 4X longer, half the weight
*5X faster charging speed
*Reliable energy storage solutions to recreational vehicles and home backup
💡How It Works?
These batteries, when connected to a solar controller (MPPT), efficiently collect energy from solar panels. They can be used for both AC and DC applications, making them versatile and cost-effective. LiFePO4 batteries are suitable for various applications, including home backup power, home security systems, pond pumps, sprinklers, small-scale poultry farming, and so on.
| LifePO4 Battery (MPPT Settings) | 12.8V | 25.6V | 38.4V | 51.2V |
| Charging Limit Voltage | 14.2V | 28.4V | 42.6V | 56.8V |
| Over Voltage Disconnect Voltage | 14.6V | 29.2V | 43.8V | 58.4V |
| Over Voltage Recconnect Voltage | 13.8V | 27.6V | 41.4V | 55.2V |
| Float Charging Voltage | 13.8V | 27.6V | 41.4V | 55.2V |
| Low Voltage Disconnect Voltage | 11.6V | 23.2V | 34.8V | 46.4V |
| Low Voltage Reconnect Voltage | 12.4V | 24.8V | 37.2V | 49.6V |
| Under Voltage Warning Voltage | 12.8V | 25.6V | 38.4V | 51.2V |
